| 応用: | 産業世帯オフィス | 端子サイズ: | M3 M4 |
|---|---|---|---|
| ネジの材質: | 鋼鉄、真鍮 | 材料: | リン青銅 |
| ネジ式: | M3 スチールネジ | ワイヤーレンジ: | 24-12 AWG |

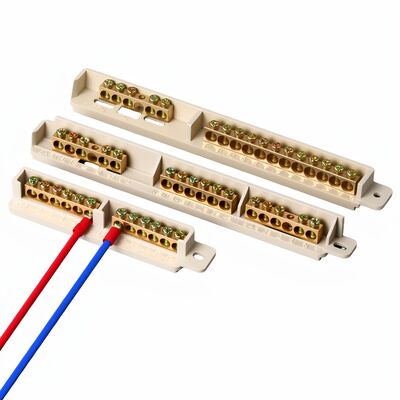

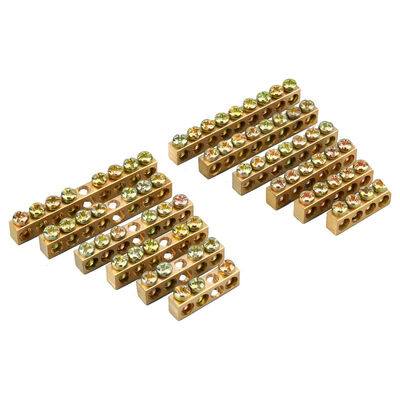

| ハイライト: | tin-plated copper ground bar,M6 PCB screw terminal,13-hole ground terminal bar |
||
Ground bars, also known as grounding busbars or earth bars, are metallic strips or blocks with multiple connection points used to terminate and bond multiple grounding conductors in electrical systems. They serve as a central hub to maintain a common electrical potential, providing a low-resistance path for fault currents to dissipate safely into the earth. Ground bars are typically installed in electrical panels, control enclosures, data centers, and telecommunications rooms.
| Material | Description |
| Copper | High conductivity, most common |
| Tinned Copper | Copper with tin coating |
| Aluminum | Lightweight, cost-effective alternative |
Plain/Unfinished (Bare Copper)
Tin-Plated (Silver appearance, corrosion resistant)
Nickel-Plated
Silver-Plated
Standard Lengths: 4.92" (125mm) to 12" (305mm)
Standard Cross-Sections: 1/4" x 2", 0.48" x 0.62"
Wire Range: #14 AWG to 2/0 AWG
Number of Ports: 6 to 12 terminals
Material Purity: 98% minimum conductivity copper
Temperature Range: -40°C to +105°C
Key Standards: UL 467 (Grounding and Bonding Equipment), CSA C22.2 No.41, ANSI/TIA-607-D, IEC 62305
Electrical panels and distribution boards
Control panels and industrial enclosures
Telecommunications rooms and data centers (BICSI/TIA compliant)
Switchgear and transformer installations
Lightning protection systems
Renewable energy systems (solar/wind)
Medical facilities and healthcare equipment
Marine and offshore installations
Scenario: Terminating multiple equipment grounding conductors in a commercial building's main electrical control panel requiring UL certification.
Selected Product: 12-Port Universal Grounding Bar (e.g., Panduit UGB2/0-414-12 or equivalent) .
Material: High-conductivity copper, 98% minimum .
Finish: Tin-plated (silver appearance) for corrosion resistance and low contact resistance .
Specifications: 8.28" (210mm) length; accepts #14 AWG to #4 AWG branch conductors and up to 2/0 AWG main grounding conductor; 12 wire ports .
Installation Data: Multiple mounting options available (bonding stand-offs, isolation stand-offs, or direct panel mount) ; suitable for 600V insulation rating when used with insulators .
Performance: Meets UL 467 and CSA 22.2 No.41 standards for grounding and bonding equipment. Provides verified low-resistance common bonding point for all panel equipment, ensuring safety compliance and proper fault current path. Tin-plated finish maintains conductivity while preventing galvanic corrosion between dissimilar metals, ensuring long-term reliability in mixed-material installations.
